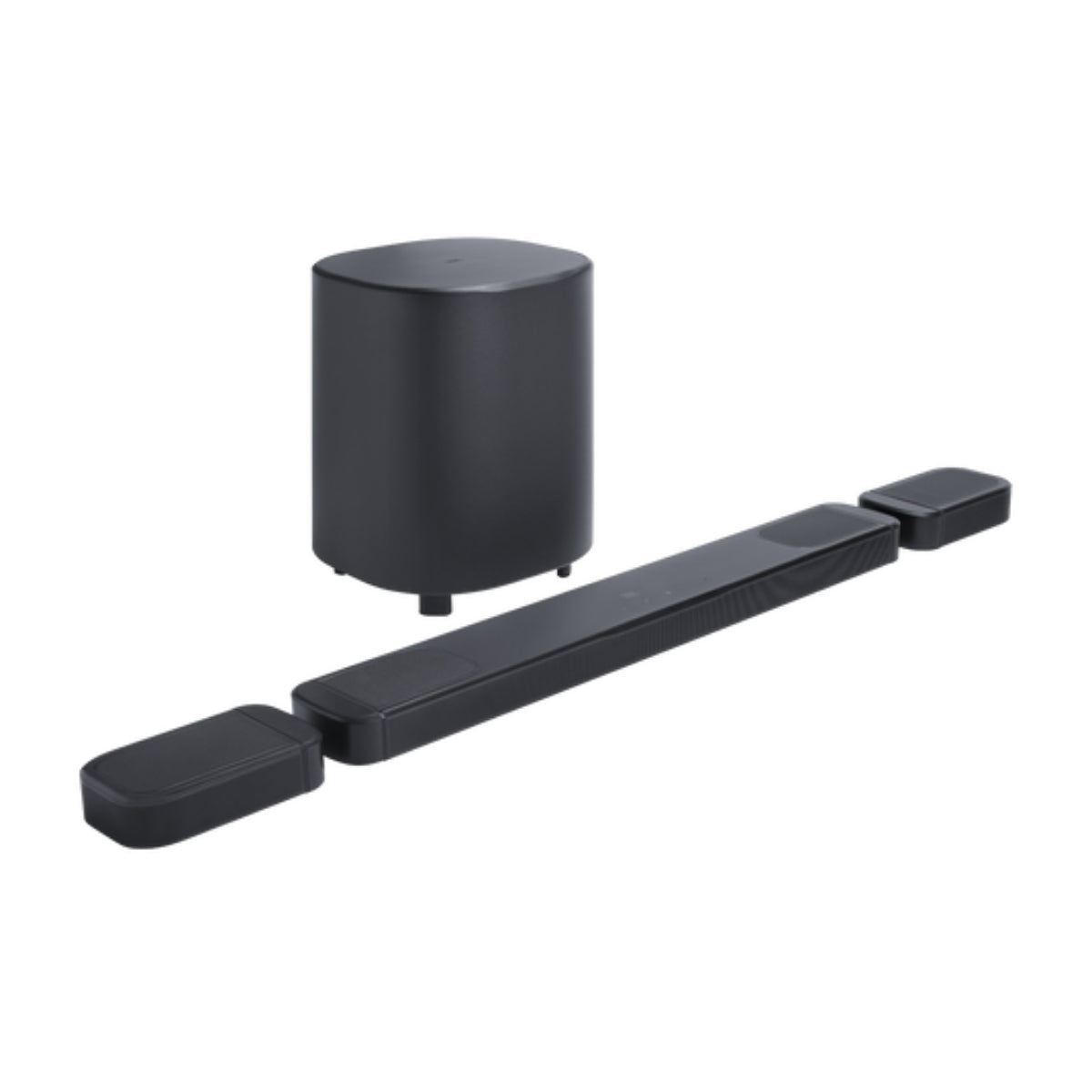

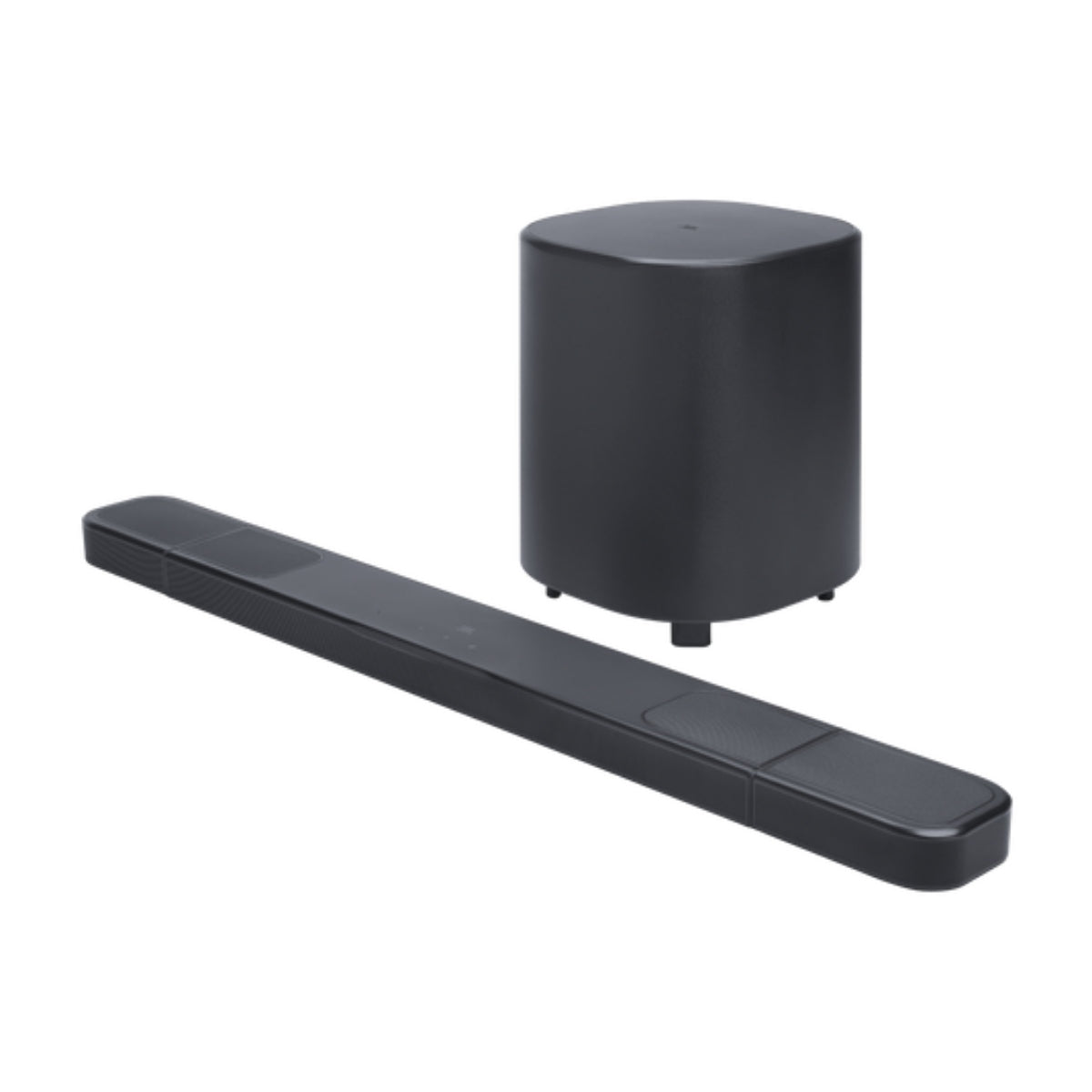

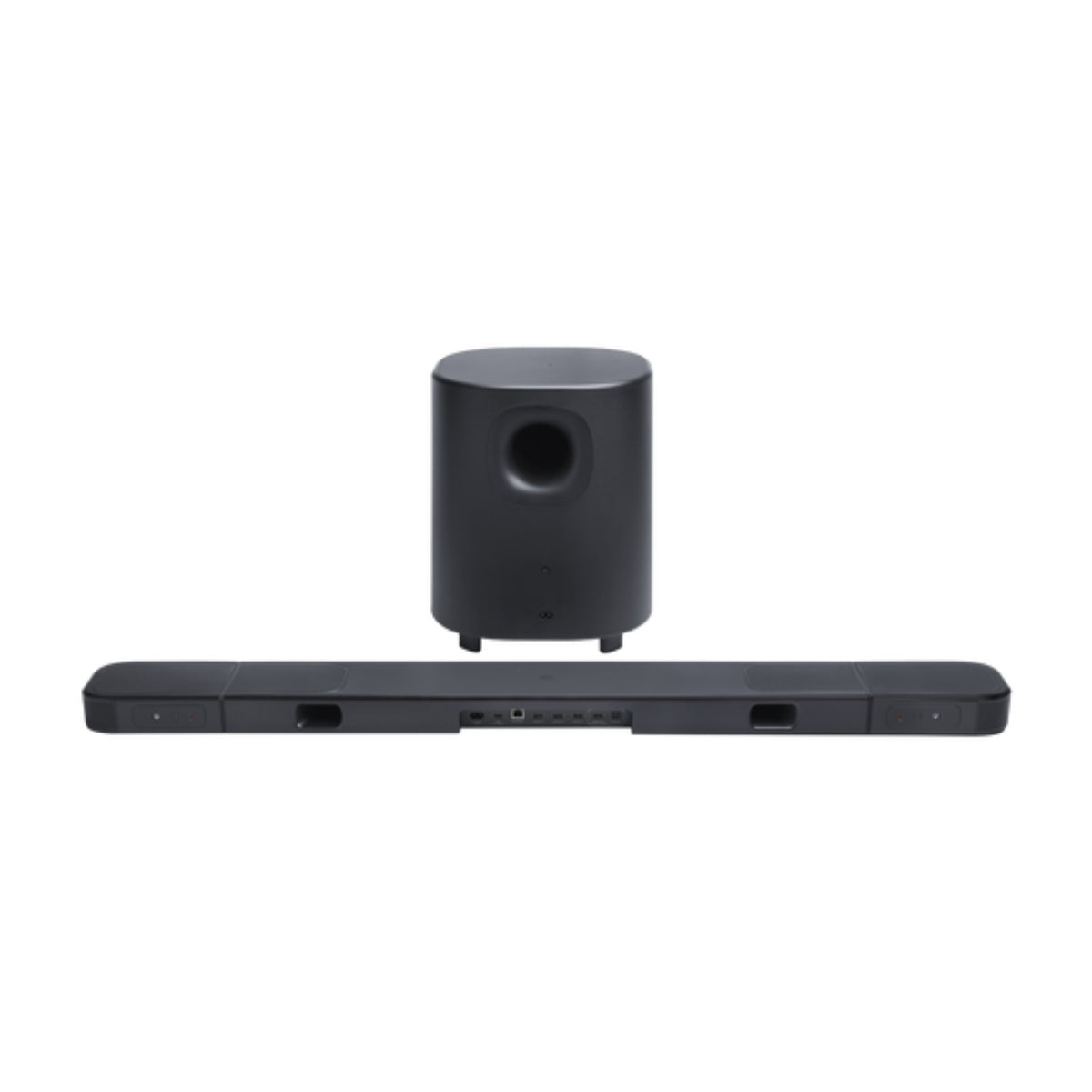

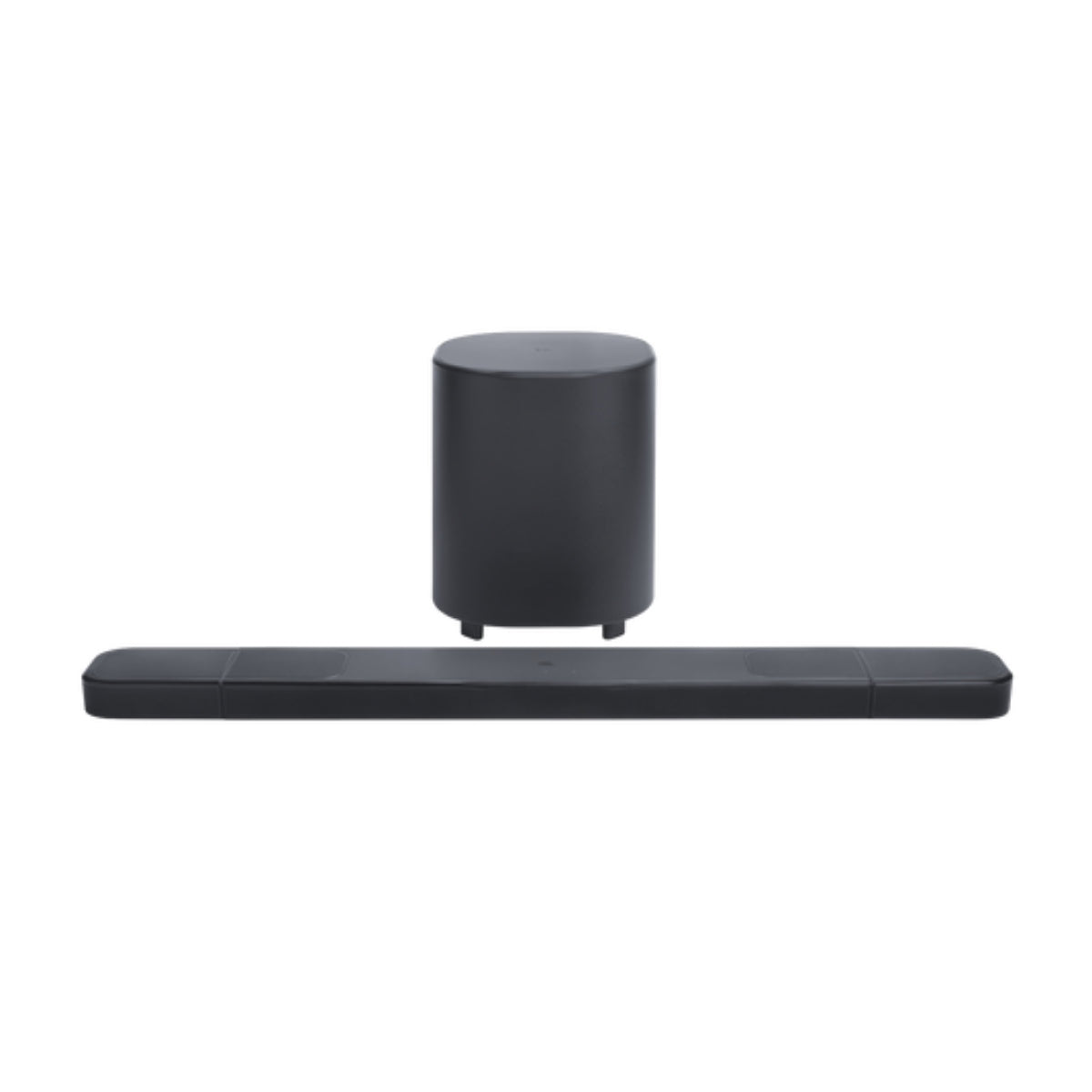

JBL Bar 1000MK2 - 7.1.4 Channel Dolby Atmos® Soundbar System

Get real spatial sound with true Dolby Atmos® and DTS:X height effects in seconds with the JBL BAR 1000MK2 soundbar. Take along one of the wireless speakers whenever you step out of the room, and you'll never miss a thing.

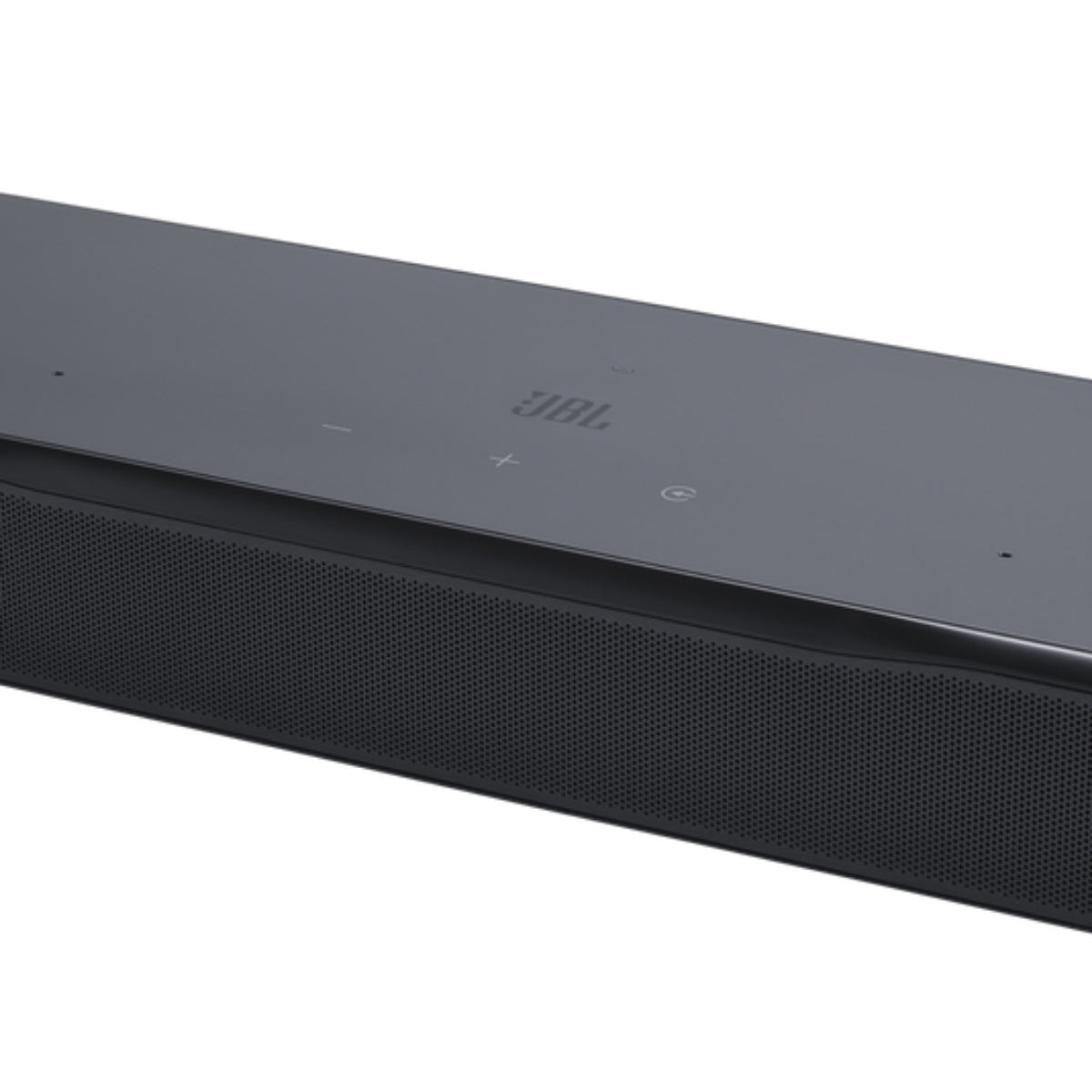

The JBL Bar 1000 is designed to transform home entertainment with a cinematic 7.1.4 channel surround sound system. Featuring Dolby Atmos®, DTS:X, and JBL’s MultiBeam™ technology, this premium soundbar creates a 3D audio experience that fills the room with clarity and depth. Two up-firing drivers in the soundbar and two more in the detachable surround speakers ensure powerful, theater-quality sound from every angle.

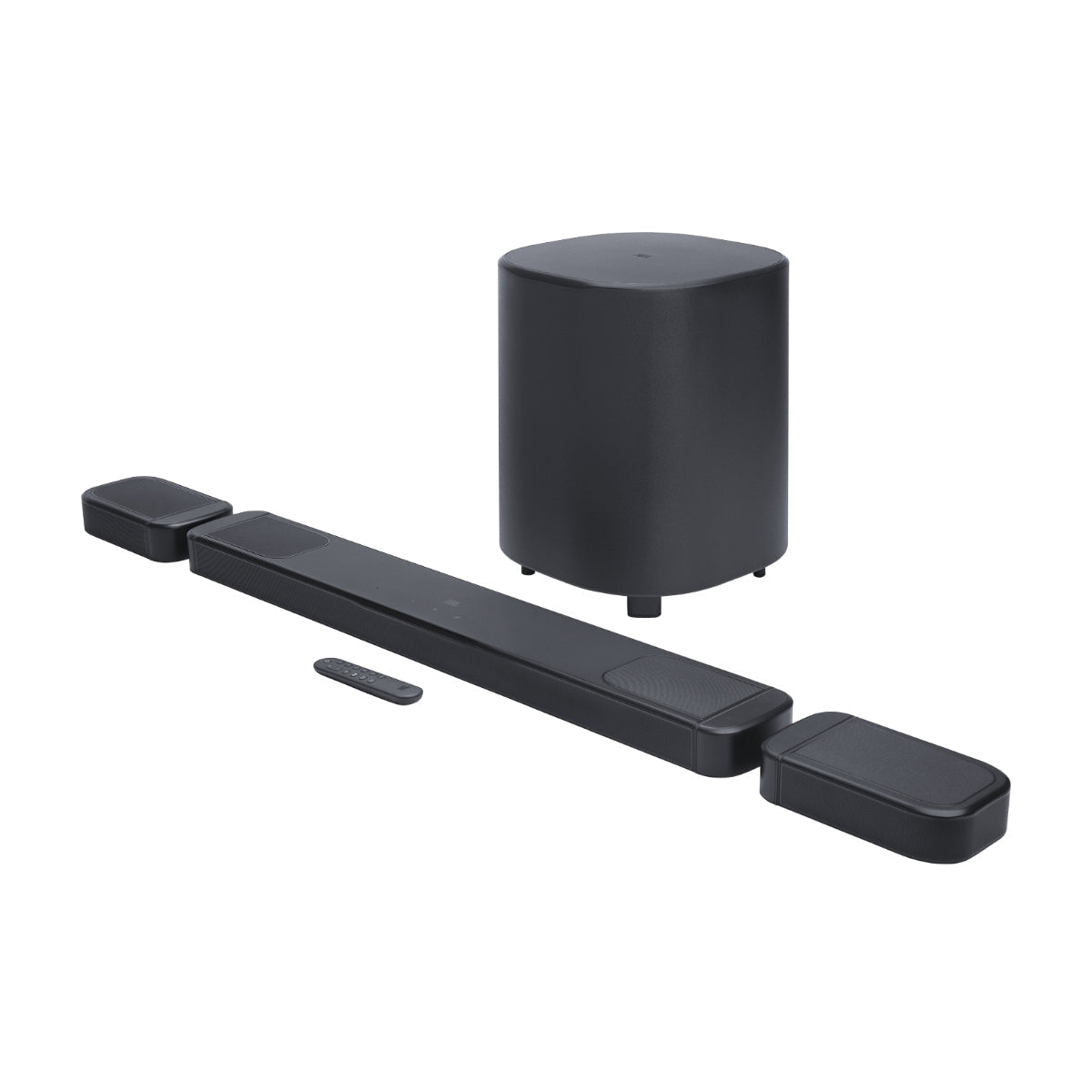

This soundbar system comes with detachable wireless surround speakers and a 10-inch wireless subwoofer, delivering rich bass and immersive audio without the hassle of additional wires. With built-in Wi-Fi supporting AirPlay, Chromecast, and Alexa Multi-Room Music, users can stream over 300 music services in high-definition. Automatic software updates also keep the system up to date with the latest features, ensuring a future-ready audio setup for movies, music, and gaming.

Key Features

• True 3D Surround Sound – Dolby Atmos®, DTS:X, and MultiBeam™ technology deliver immersive cinematic sound.

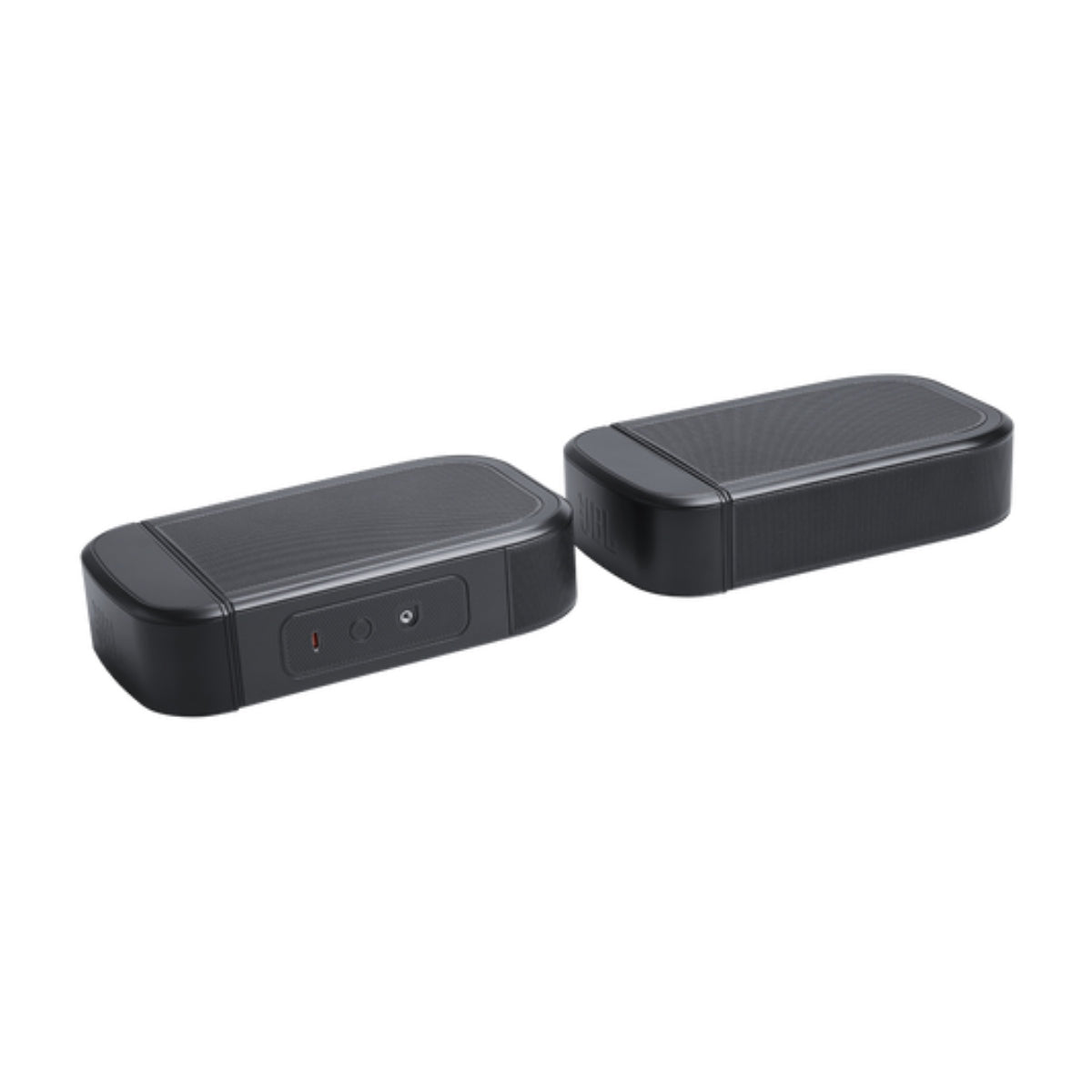

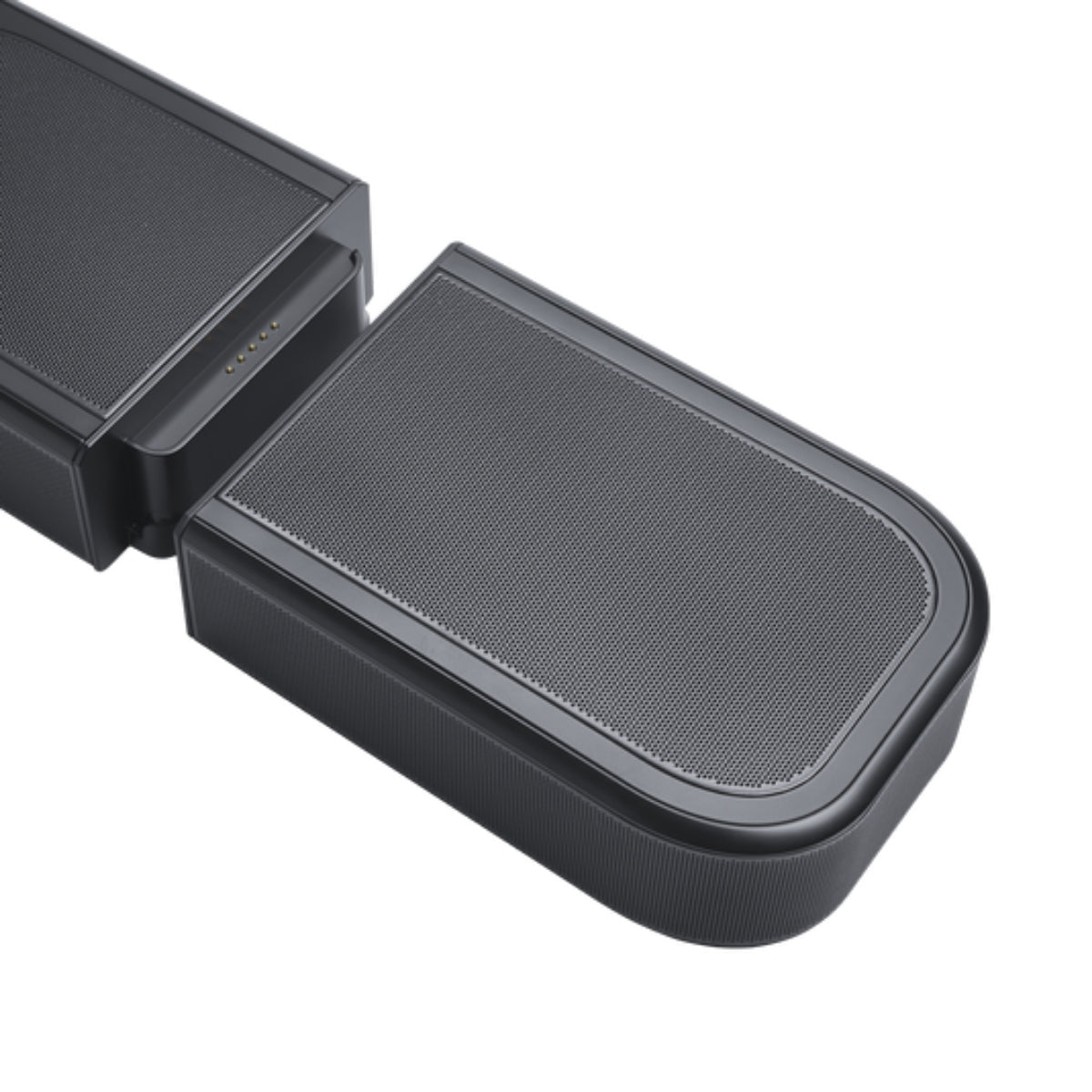

• Detachable Wireless Surround Speakers – Battery-powered rear speakers provide real surround sound with easy placement.

• Powerful Audio Performance – 880W of total output power ensures room-filling sound.

• Wireless Subwoofer – A 10” subwoofer produces deep and punchy bass.

• Built-In Wi-Fi Streaming – Access AirPlay, Chromecast, Alexa MRM, and over 300 streaming services.

• Automatic Software Updates – The system stays up-to-date with new features via Wi-Fi.

• Seamless Connectivity – HDMI eARC, Bluetooth 5.3, and multiple HDMI inputs for easy setup with TVs and devices.

Specifications

General Specifications

• Model: BAR 1000

• Sound system: 7.1.4 channel

• Power supply: 100 - 240V AC, ~ 50/60Hz

• Networked standby power: < 2.0W

• Operating temperature: 0°C - 45°C

Audio Specifications

• Total speaker power output (Max @THD 1%): 880W

• Soundbar output power (Max @THD 1%): 440W

• Surround speaker output power (Max @THD 1%): 2x 70W

• Subwoofer output power (Max @THD 1%): 300W

• Soundbar transducer: 5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

• Surround speaker transducer: 0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers

• Subwoofer transducer: 10” (260mm)

• Frequency response: 33Hz - 20kHz (-6dB)

• Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

• Total soundbar: 1194 x 56 x 125 mm / 47" x 2.2" x 4.9"

• Main soundbar: 884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"

• Detachable surround speakers (each): 155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"

• Subwoofer: 305 x 440.4 x 305 mm / 12" x 17.3" x 12"

• Soundbar weight: 3.7 kg / 8.2 lbs

• Detachable surround speaker weight (each): 1.4 kg / 3.1 lbs

• Subwoofer weight: 10 kg / 22 lbs

• Packaging dimensions: 1000 x 375 x 475 mm / 39.4" x 14.8" x 18.7"

• Packaging weight: 19.4 kg / 42.7 lbs

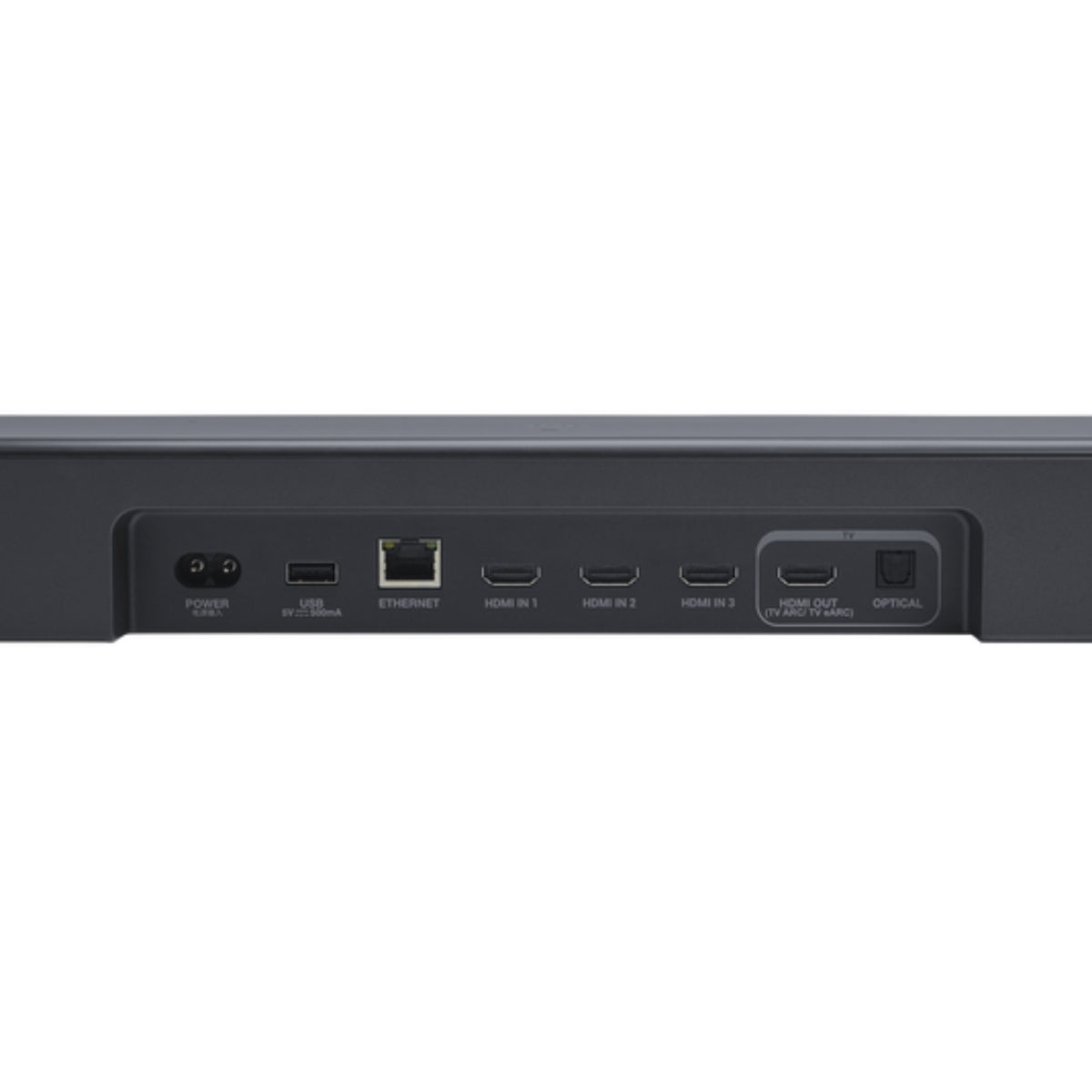

Control and Connection Specifications

• USB port: Type A

• USB rating: 5V DC, 0.5A

• Supporting file format: MP3

• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

• MP3 sampling rate: 16 - 48 kHz

• MP3 bitrate: 80 - 320 kbps

• Bluetooth version: 5.3

• Bluetooth profile: A2DP 1.2, AVRCP 1.5

• Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz

• Bluetooth transmitter power: <15dBm (EIRP)

• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

• 2.4G Wi-Fi frequency: 2412 - 2472MHz

• 2.4G Wi-Fi power: < 20dBm (EIRP)

• 5G Wi-Fi frequency: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

• 5G Wi-Fi power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

• 2.4G wireless frequency range: 2406 - 2474MHz

• 2.4G wireless power: <10dBm (EIRP)

• Battery: Lithium battery, 3.635V, 3283mAh

Video Specifications

• HDMI video input: 3

• HDMI video output (with eARC): 1

• HDMI HDCP version: 2.3

• HDR pass-through: HDR10, Dolby Vision

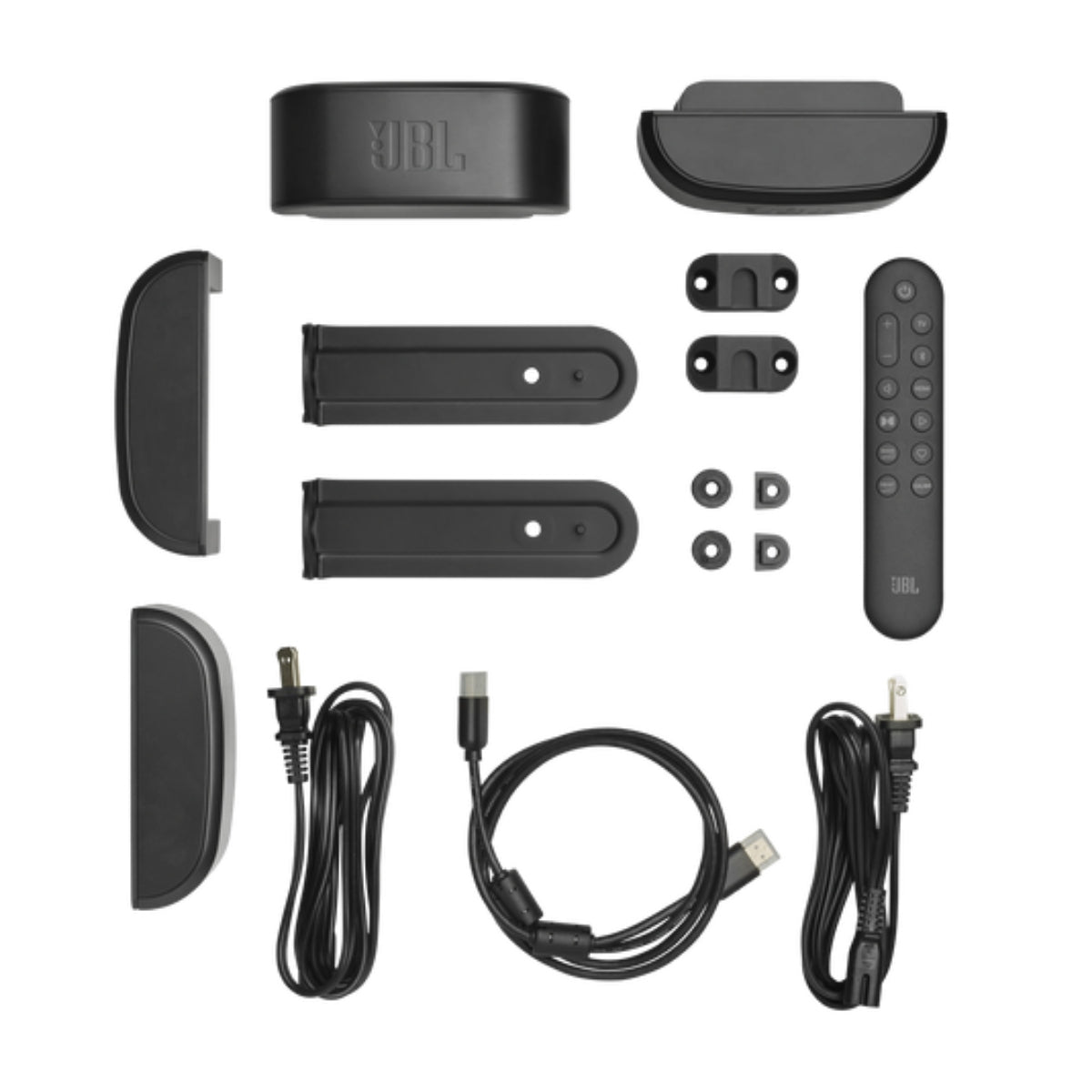

What's in The Box

• 1x Main soundbar

• 2x Detachable wireless surround speakers

• 1x Wireless subwoofer

• Remote control with 2x batteries

• Power cords (up to 8pcs depending on region SKUs)

• 1x HDMI cable

• 2x L-shape wall-mount brackets (main bar) + 2x U-shape wall-mount brackets (surround speakers) kit with screws

• 4x Side caps

• Quick start guide

• Safety instruction and Warranty card

• Wall mount template
